Set up the 'simple grpc data source'

Set up the 'simple grpc data source'

This is the third step when setting up Grafana dashboards. The previous steps can be found here:

  1. Creating an API key
  2. Creating a Grafana account

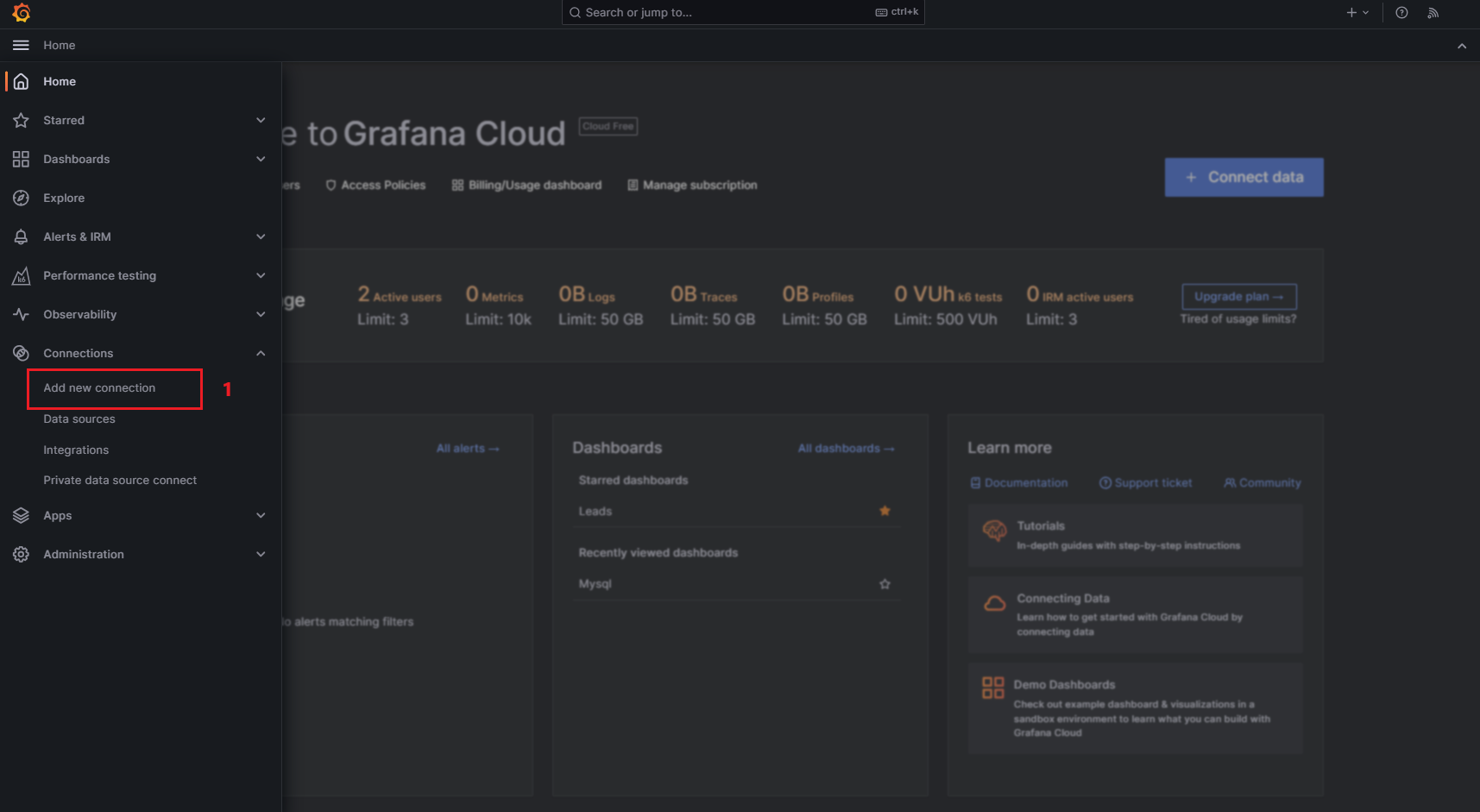

The first thing that is needed to do is to get the “simple grpc data source”. Click on the Connections button and select “Add new connection” (1).

Grafana 1.png

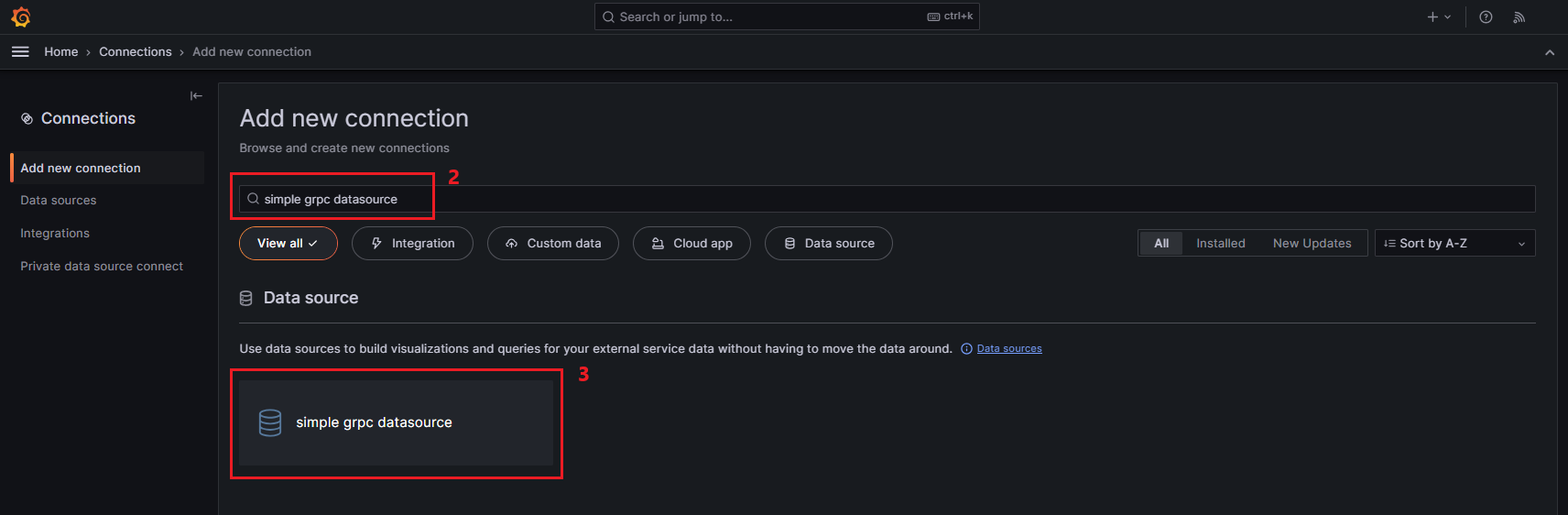

Search for “simple grpc data source” (2), and click on the “simple grpc data source” tile (3)

Grafana 2.png

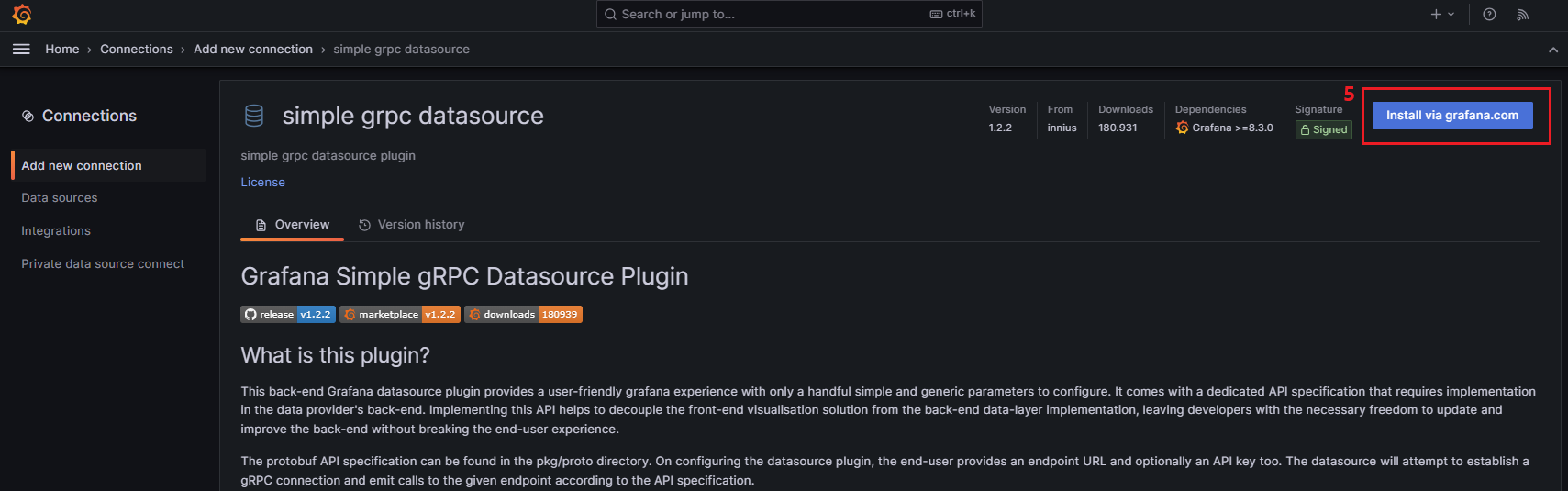

On the next page, click on the button “Install via Grafana.com” (5)

Grafana 3.png

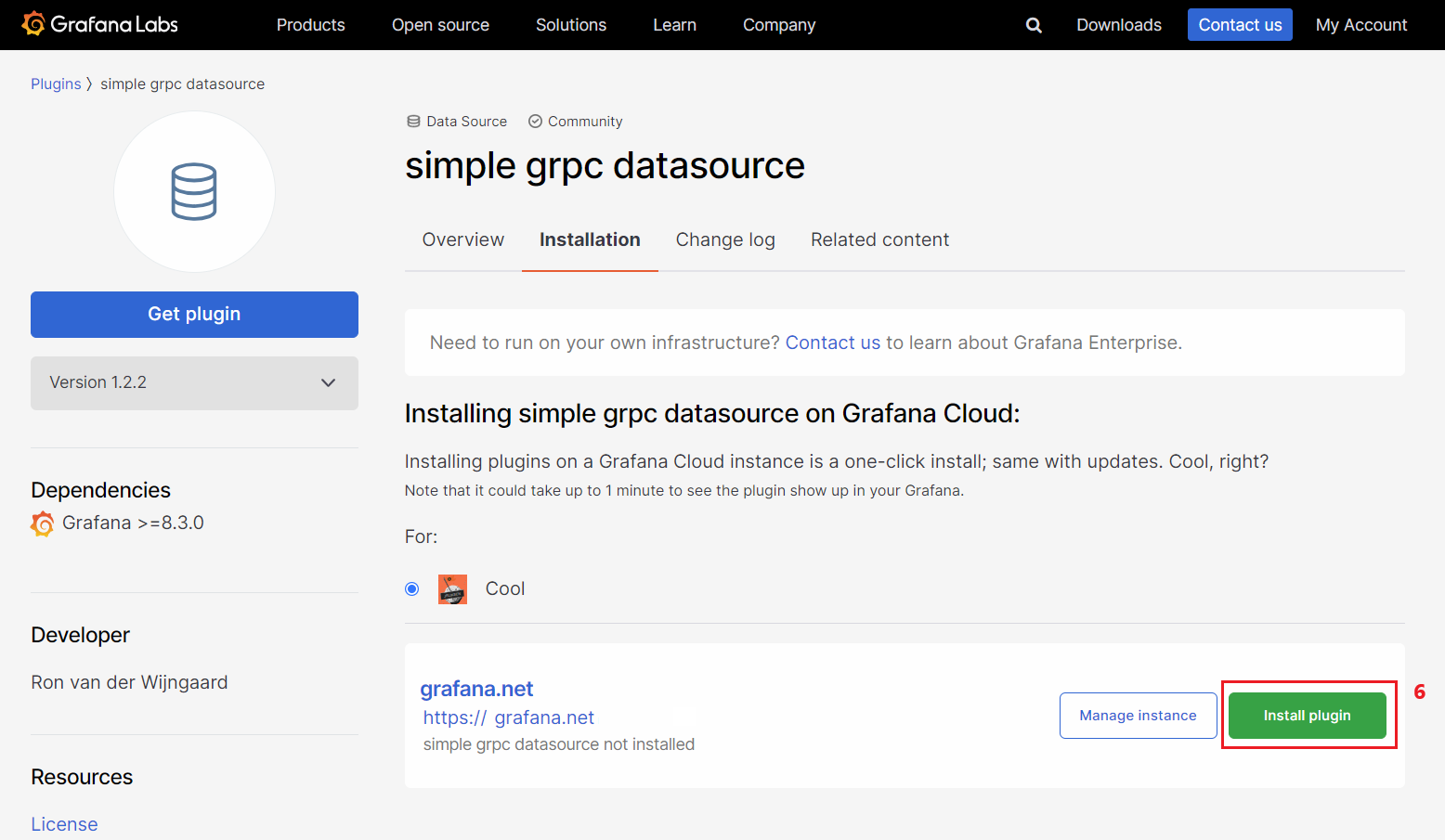

At the bottom of the next screen click on the “Install plugin” button (6).

Grafana 4.png



The data source will now be installed in your Grafana dashboard environment.

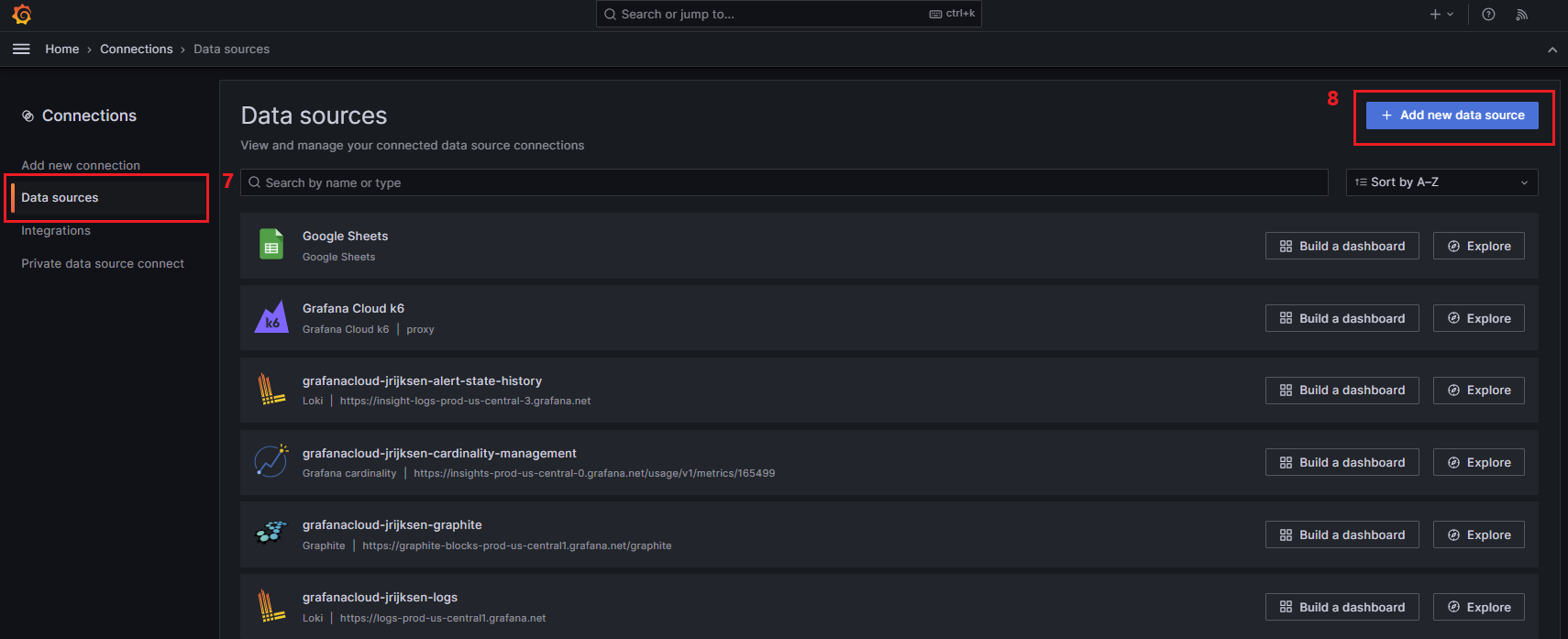

Return to the Grafana dashboard environment, go to Connections, and select “Data sources” (7). Click on the “Add new data source” button (8).

Grafana 5.png

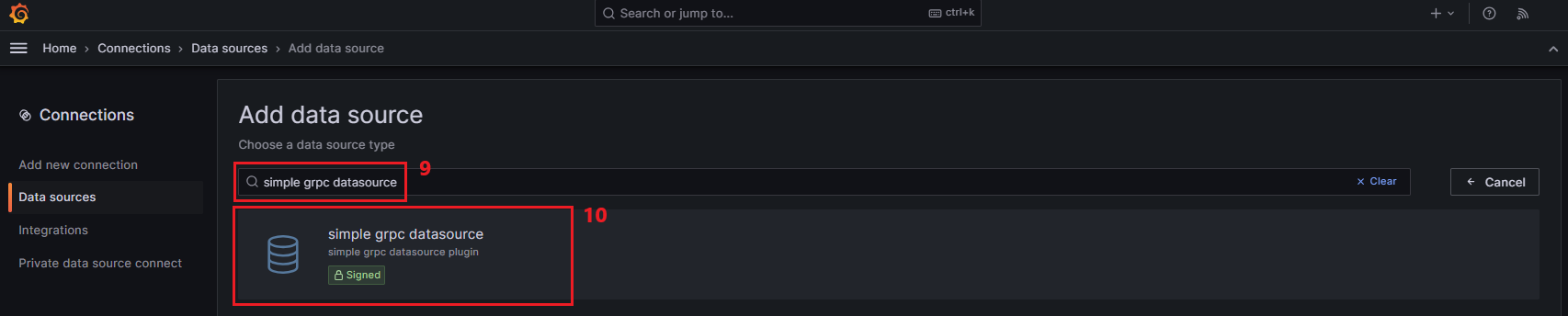

Search for “simple grpc data source” (9), and click on the “simple grpc data source” tile (10).

Grafana 6.png

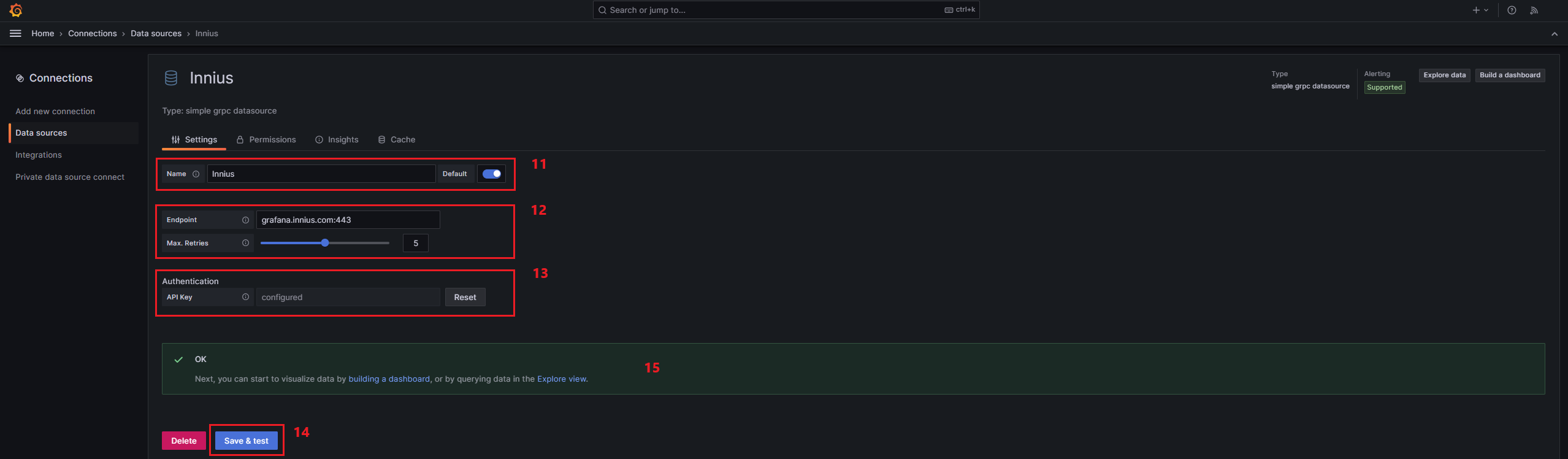

The data source can be configured as follows:

  • Give the data source a name, we advise the name “Innius”, and put the Default selector on. (11)
  • Fill in as end point: grafana.innius.com:443 (12)
  • Check the selector “API Key Authentication” and enter the innius API key. (13)  (See chapter 2 how to create an innius API key)
  • Press the button “Save & test” (14)

Grafana 7.png

If everything has been completed successfully, a green check box with OK will appear (15) and you are ready to go to the next step and create your first dashboard!
