Quality Report

With the Quality report you are able to analyze the rejections per batch, set against the the total production for the selected period.

The input for this report is generated by first establishing the relationship between the machine sensors and the relevant batch number sensor. This is the same as used for the Batch reports, and you can read how to configure Batch sensors is the article: How to configure batches and recipes.

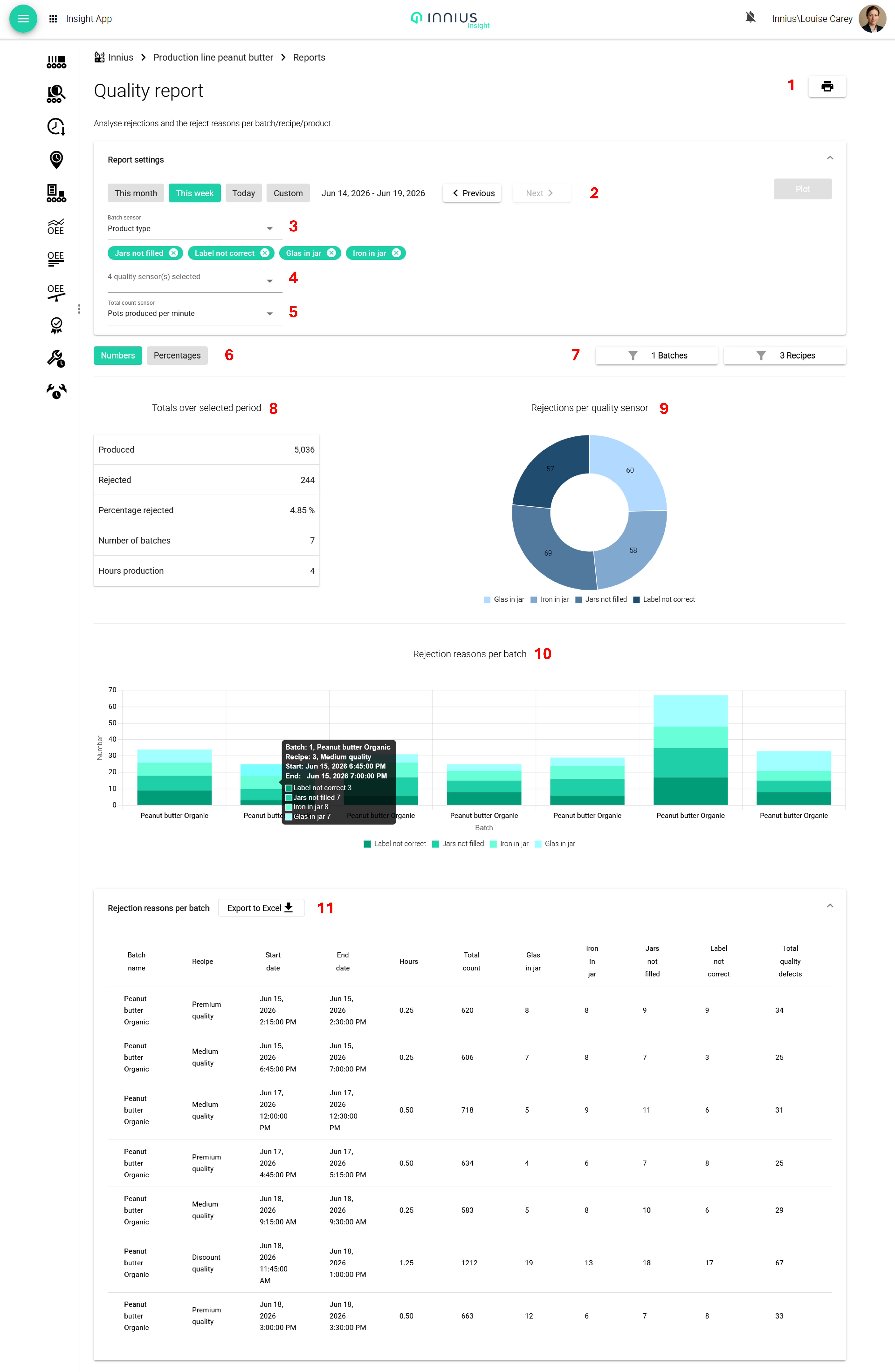

The report is as follows:

1. Like other reports, click the print button to print the report.

To configure the report:

2. Select the time period using either the preconfigured periods, or a custom period.

3. Select a batch sensor.

4. Then multiple quality/rejection sensors are selected.

5. Finally, the total production count sensor is selected.

Then click the 'plot' button to generate the graphs and tables. Any changes to the settings, will require the report to be replotted.

6. The chips 'Numbers' and 'Percentages', allow you to switch how the data is displayed.

7. Specific batches and recipes, within the time period, can be selected from the dropdown lists to filter the data.

8. An overview of the totals for the selected period is displayed.

9. The Doughnut chart drills down into either the number of rejected items, or the percentage of rejected items, depending on the selection; and displays the rejections per quality sensor.

10. The stacked bar graph is similar to that used on the Batch report, and provides insight into which batches have the most and least rejections, and what these are.

11. At the bottom of the page is a table showing quality defects per batch and recipe. The data also responds to the numbers or percentages selection. This data table can also be downloaded as a Microsoft Excel file.
