Logistics data report

The Logistics data report combines and visualizes production order data from an external system like ERP or MES with the associated machine data. This provides powerful insights like production efficiency, material costs, energy usage, quality and wastage per production order. To connect the external production data within innius, you need to setup the 'work center' property on the machine, see the article about properties.

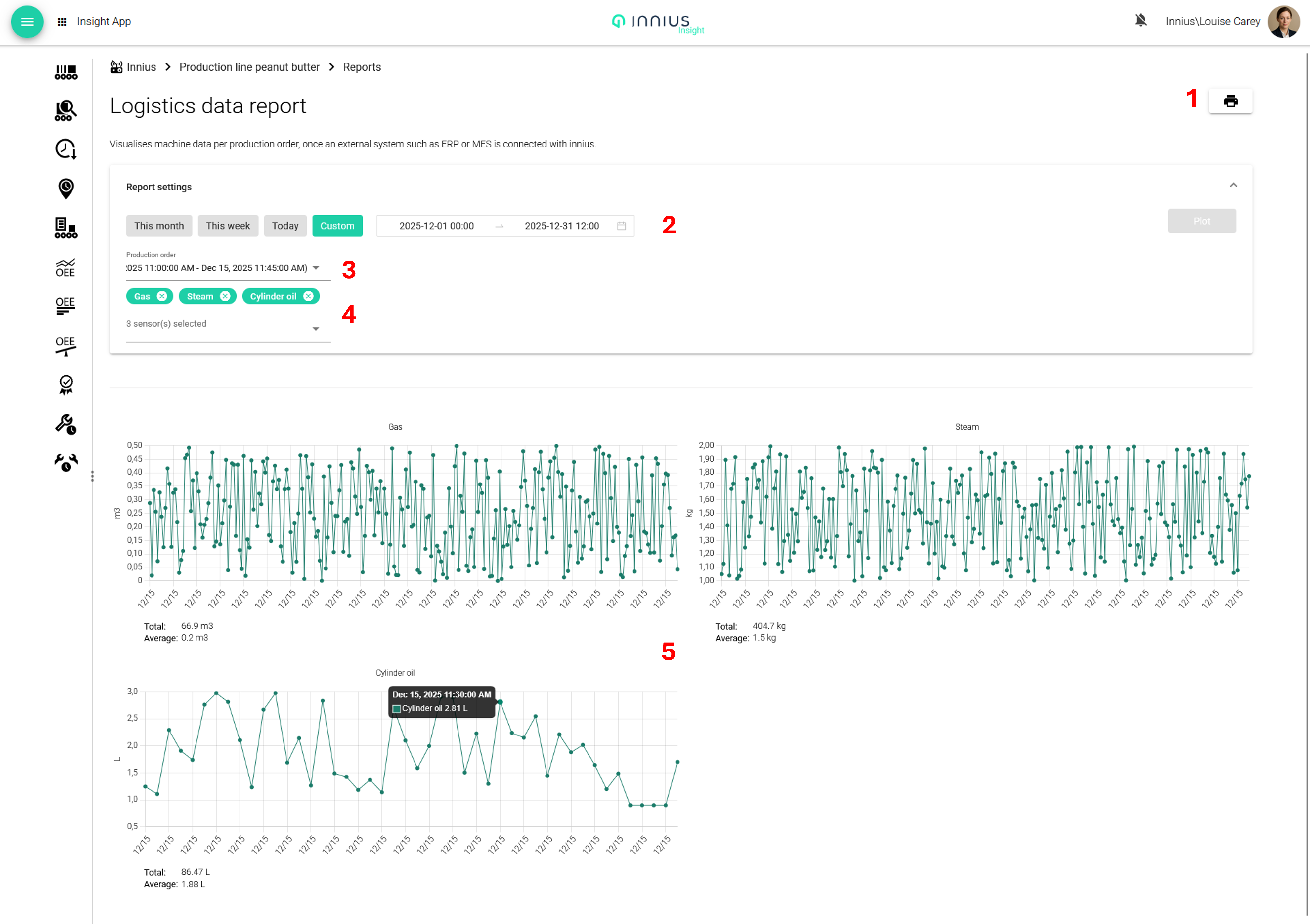

The report layout is as follows:

1. As usual there is a print button, to open a print format of the report.

To configure the report, do the following:

2. Select the time period using either the preconfigured periods, or a custom period.

3. Select a production order, from the dropdown list.

4. Select one or more sensors for which you want to see the data.

Then click on the 'Plot' button, to generate the report. Any changes to the settings, will require the report to be replotted.

5. Based on the sensor data type the graph type will be different. The discrete data will be displayed in a stacked bar chart, and the other sensor data types will be displayed as a line graph. It is possible to zoom in and out of the graphs, and hovering the mouse over a data point will show the data specific to that point as a pop-up.
